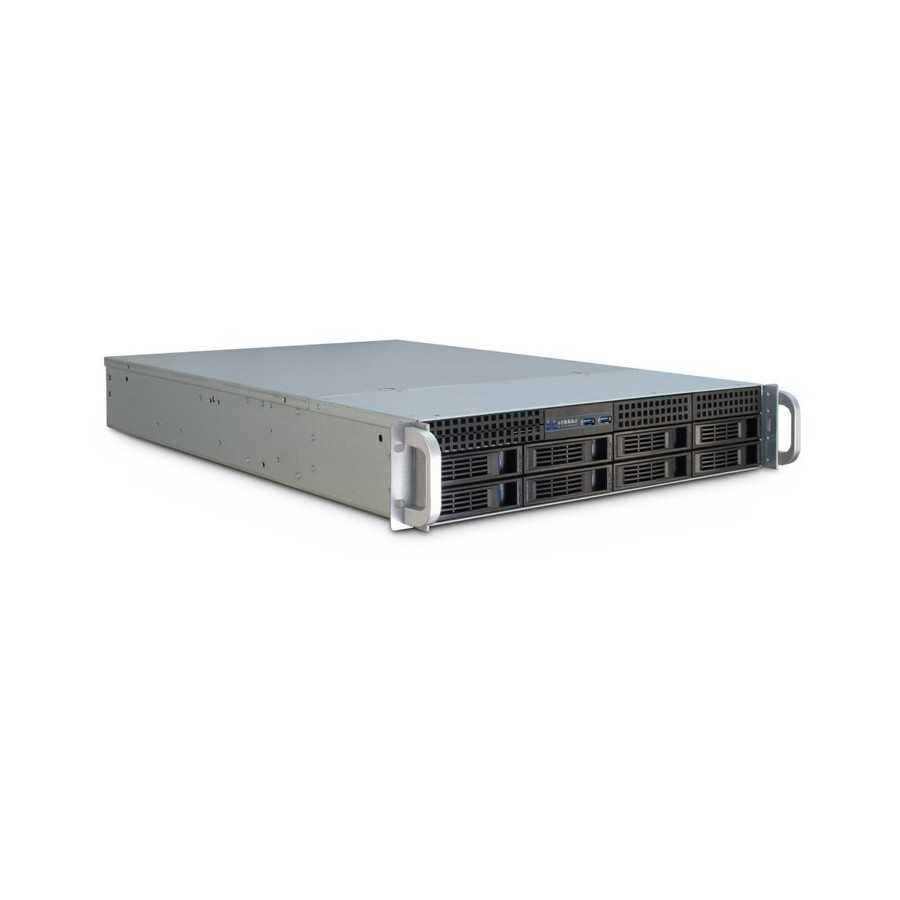

Serie IronCore 200

Server Rack. 2U - TRK2MS33-AR210-800R

Main Features

• 1 x Socket LGA 4677
• 8 x DDR5 RDIMM, 16 x DIMMs memory
• 8 x SATA 3,5”/2,5”, 1 x M.2 connector with PCIe Gen3 x4 interface
• 7 x PCIe Gen5 x16 and x8 expansion slots
• 2 x USB 3.2 Gen1
• Onboard VROC key header

Processor System
CPU
1 x Socket LGA 4677 Intel Xeon 4th Gen Scalable Processor, Intel 5th Gen Scalable Processor, Intel Xeon Max Series
Memory
8 x DDR5 RDIMM, 16 x DIMMs
Storage
2 x MCIO 8i for 4 x Gen5 NVMe from CPU, 2 x SlimSAS 4i for 8 x SATA from PCH, 2 x SATA from PCH, 1 x M.2 connector (2280/22110), PCIe Gen3 x4 from PCH
Chipset
Intel C741
Graphics
Aspeed AST2600 + 1 x VGA port
LAN Chipset
2 x 10 Gb/s LAN (1 x BCM57416), 1 x 10/100/1000 Mbps Mgmt LAN
Audio
No

Front I/O
Power Button
1 x Power Button, 1 x Reset Button
LED
1 x Power LED, 1 x HDD LED, 3 x Network Activity
USB
2 x USB 3.0

Rear I/O
USB
2 x USB 3.2 Gen1 (Type-A)
VGA
1 x VGA port
LAN
2 x 10 GbE LAN + 1 x Mgmt LAN
Other ports
1 x Serial port, 2 x RJ45 ports, 1 x MLAN port, 1 x ID button with LED

Management Solution
Intel SATA RAID 0/1/10/5, On-board VROC key header

Expansion
Slot Opening
4 x PCIe x 16 (Gen5 x8), 3 x PCIe x 16 (Gen5 x16 or x8), 2 x MCIO 8i (Gen5 x8)

System Security
1 x TPM header with SPI interface

Mechanical
Dimension
688 x 481 x 89 mm
Weight
10.86kg
Power Supply
2HU Server Power Supply

Environmental
Operating Temp
10°C ~ 40°C
Non-Operating Temp
-40°C ~ 60°C
Humidity
8% ~ 80%

Monitoring
CPU Temperature
FAN RPM

OS Support
OS
Windows Server, Linux, Ubuntu, ESXi
