Serie IronCore 200

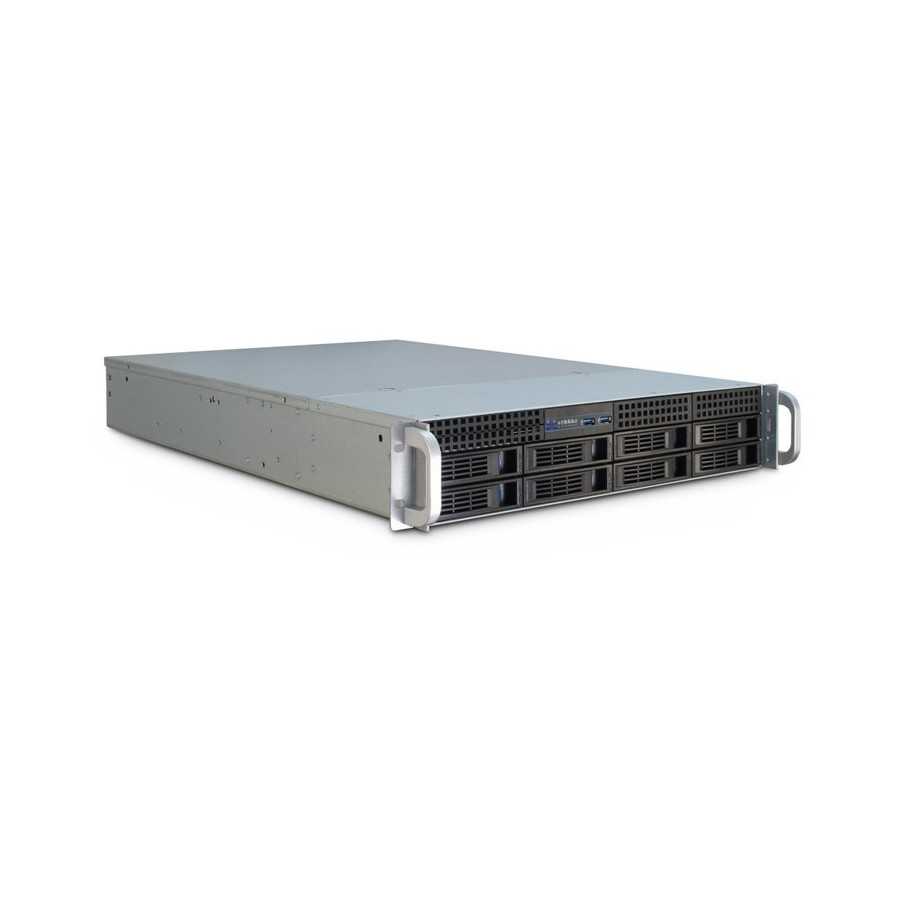

Server Rack. 2U - TRK2P13R-E210-800R

Main Features

• 1 x Socket LGA1700
• 4 x DDR5 ECC UDIMM memory
• 8 x SATA 6Gb/s, 2 x M.2 connector (22110, support NVMe PCIe x4 link)
• 2 x PCIe 5.0 slot, 2 x PCIe 4.0 slot
• 4 x USB 3.2 Gen2, 2 x USB 2.0
• Onboard ASMB11-iKVM management module

Processor System
CPU
1 x Socket LGA1700 Intel Pentium Processor, Intel Xeon E Processor, Intel Xeon 6300 Series Processor
Memory
4 x DDR5 ECC UDIMM (Up to 128GB)
Storage
8 x SATA 6Gb/s ports, 2 x M.2 connector (22110, support NVMe PCIe x4 link)
Chipset
Intel C266
Graphics
Aspeed AST2600 con 64MB VRAM (VGA da BMC)
LAN Chipset
1 x Dual Port Intel X710-AT2 + 1 x Mgmt LAN
Audio
No

Front I/O
Power Button
1 x Power Button, 1 x Reset Button
LED
1 x Power LED, 1 x HDD LED, 3 x Network Activity
USB
2 x USB 3.0

Rear I/O
USB
4 x USB 3.2 Gen2, 2 x USB 2.0
VGA
1 x VGA port (VGA from BMC)
LAN
2 x 10 GbE LAN + 1 x Mgmt LAN

Management Solution
On-board ASMB11-iKVM for KVM-over-IP

Expansion
Slot Opening
2 x PCI-E x 8 (Gen4 x 4 Link), 1 x PCI-E x 8 (Gen5 x 8 Link), 1 x PCI-E x 16 (Gen5 x 16 Link)

System Security
Intrusion Switch, Key Lock, Padlock Loop, Kensington Slot

Mechanical
Dimension
688 x 481 x 89 mm
Weight
10.86kg
Power Supply
2HU Server Power Supply

Environmental
Operating Temp
10°C ~ 50°C
Non-Operating Temp
-40°C ~ 70°C
Humidity
20% ~ 90%

Monitoring
CPU Temperature
FAN RPM

OS Support
OS
Windows Server, Linux, Ubuntu, ESXi
