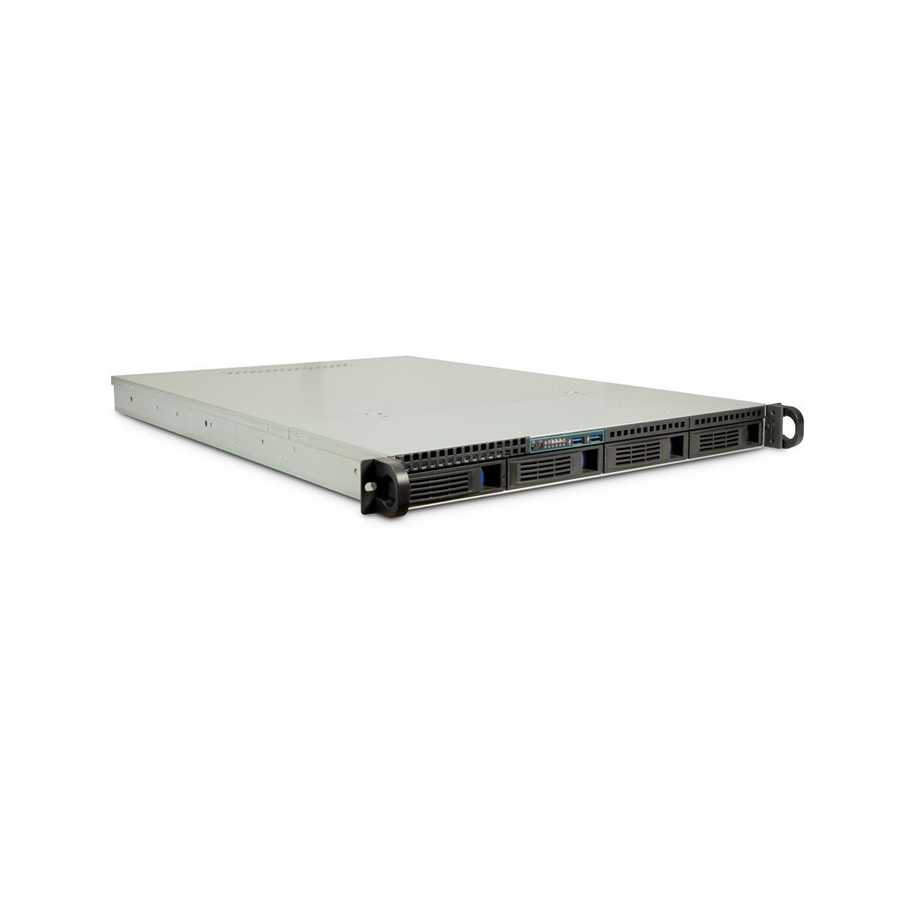

Serie IronCore 100

Server Rack. 1U - TRK1P13R-M500S

Main Features

• 1 x Socket LGA1700
• 4 x DDR5 ECC UDIMM memory
• 8 x SATA 3 6Gb/s, 1 x M.2 connector (2280/2260/2242)
• 1 x PCIe 5.0 slot, 1 x PCIe 4.0 slot
• 3 x USB 3.2 Gen2
• Onboard ASMB11-iKVM management module

Processor System
CPU
1 x Socket LGA1700 Intel Pentium Processor, Intel Xeon E Processor, Intel Xeon 6300 Series Processor
Memory
4 x DDR5 ECC UDIMM (Up to 128GB)
Storage
8 x SATA 3 6Gb/s ports, 1 x M.2 connector (2280/2260/2242)
Chipset
Intel C262
Graphics
Aspeed AST2600 con 64MB VRAM (VGA da BMC)
LAN Chipset
2 x Intel I210-AT2 + 1 x Mgmt LAN
Audio
No

Front I/O
Power Button
1 x Power Button, 1 x Reset Button
LED
1 x Power LED, 1 x HDD LED, 3 x Network Activity, 1 x Alert
USB
2 x USB 3.0

Rear I/O
USB
3 x USB 3.2 Gen2
VGA
1 x VGA port (VGA from BMC)
LAN
2 x GbE LAN + 1 x Mgmt LAN

Management Solution
On-board ASMB11-iKVM for KVM-over-Internet

Expansion
M.2
1 x M.2 (2280/2260/2242)
Slot Location
1 x PCI-E x 8 Gen4 x 4 Link, 1 x PCI-E x 16 Gen5 x 16 Link

System Security
Intrusion Switch, Key Lock, Padlock Loop, Kensington Slot

Mechanical
Dimension
678 x 481 x 44,5 mm
Weight
8.70kg
Power Supply
300w single power supply

Environmental
Operating Temp
10°C ~ 50°C
Non-Operating Temp
-40°C ~ 70°C
Humidity
20% ~ 90%

Monitoring
CPU Temperature
FAN RPM

OS Support
OS
Windows Server, Linux, Ubuntu, ESXi
