Serie IronCore 100

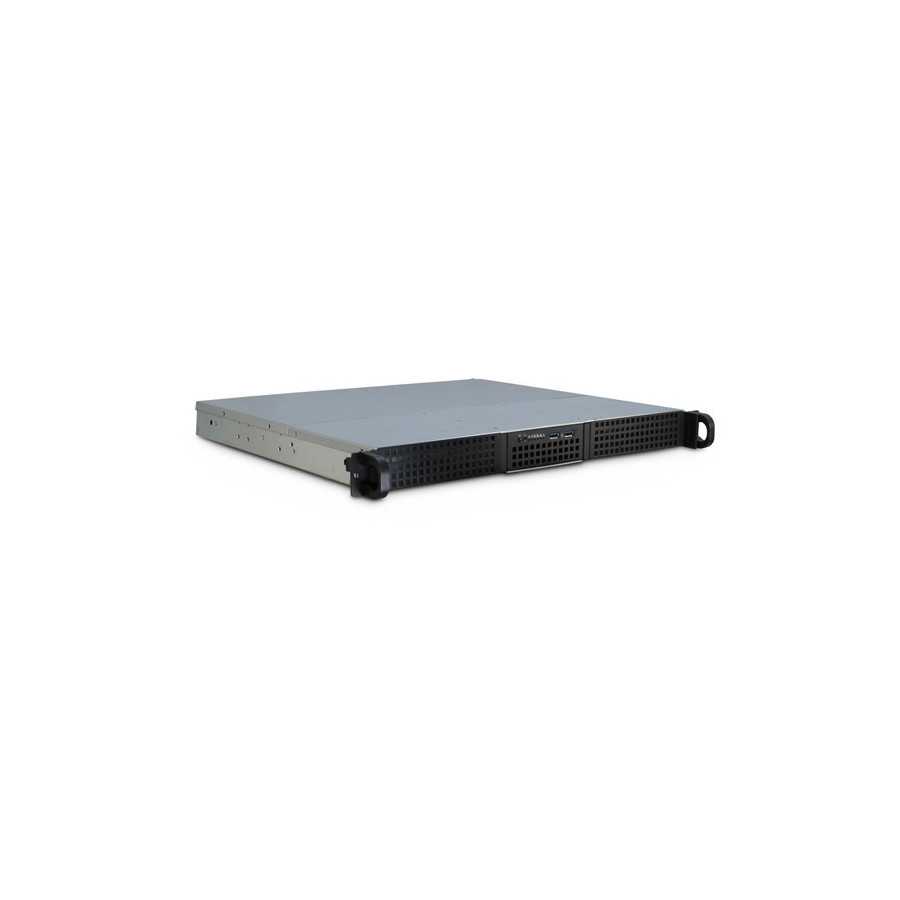

Server Rack. 1U - TRK1P13R-I350S

Main Features

• 1 x Socket LGA1700
• 2 x DDR5 ECC UDIMM memory
• 4 x SATA 2.5” or 2 x SATA 3.5”, 6Gb/s, 1 x M.2 connector (2280, support NVMe PCIe x4 link)
• 1 x PCIe 5.0 slot
• 2 x USB Gen1, Gen2
• Onboard ASMB11-iKVM management module

Processor System
CPU
1 x Socket LGA1700 Intel Pentium Processor, Intel Xeon E Processor, Intel Xeon 6300 Series Processor
Memory
2 x DDR5 ECC UDIMM (Up to 64GB)
Storage
4 x SATA 2.5” or 2 x SATA 3.5”, 6Gb/s ports by 4 Mini-SAS HD connectors, 1 x M.2 connector (2280, support NVMe PCIe x4 link)
Chipset
Intel C262
Graphics
Aspeed AST2600 con 64MB VRAM (VGA da BMC)
LAN Chipset
2 x Intel I210-AT2 + 1 x Mgmt LAN
Audio
No

Front I/O
Power Button
1 x Power Button, 1 x Reset Button
LED
1 x Power LED, 1 x HDD LED, 3 x Network Activity, 1 x Alert
USB
2 x USB 3.0

Rear I/O
USB
2 x USB 3.2 Gen2
USB
2 x USB 3.2 Gen1
VGA
1 x VGA port (VGA from BMC)
LAN
2 x 1 GbE LAN + 1 x Mgmt LAN

Management Solution
On-board ASMB11-iKVM for KVM-over-IP

Expansion
Slot Opening
1 x PCI-E x 16 Gen5 Link

System Security
Intrusion Switch, Key Lock, Padlock Loop, Kensington Slot

Mechanical
Dimension
435 x 482 x 44,5 mm
Weight
5.00kg
Power Supply
300w single power supply

Environmental
Operating Temp
10°C ~ 50°C
Non-Operating Temp
-40°C ~ 70°C
Humidity
20% ~ 90%

Monitoring
CPU Temperature
FAN RPM

OS Support
OS
Windows Server, Linux, Ubuntu, ESXi
