Serie IronCore 200

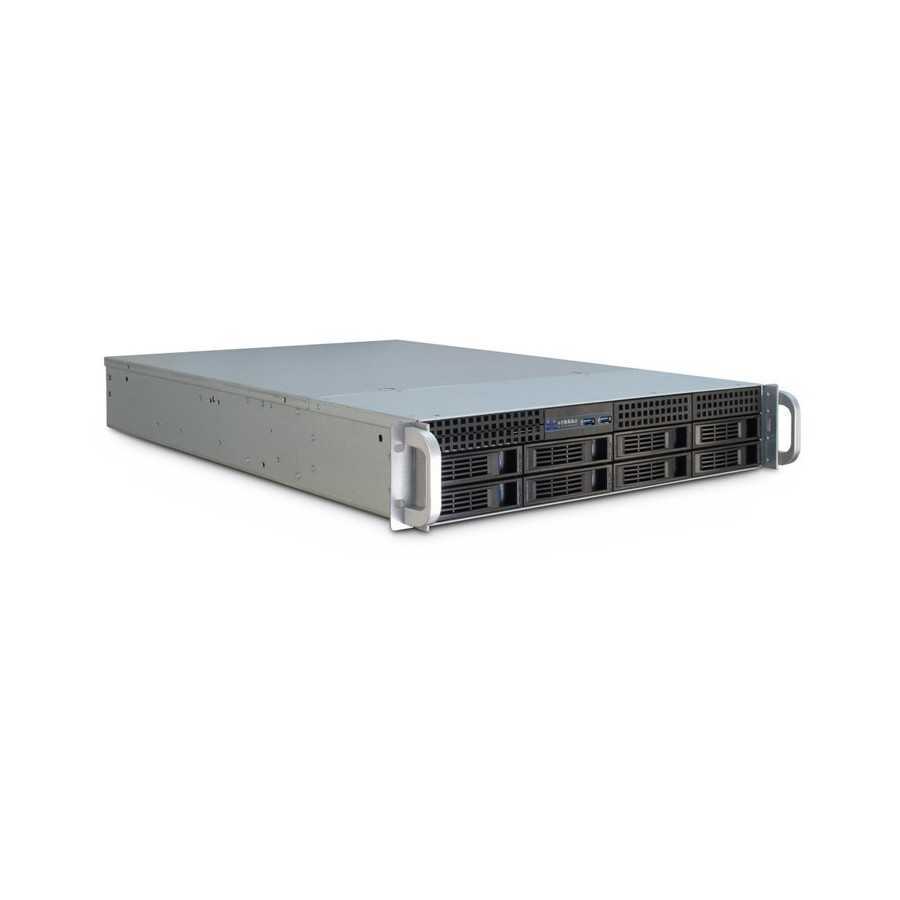

Server Rack. 2U - TRK2Z13PE-D210-1200R

Main Features

• 2 x Socket LGA 4677
• 16 x DDR5 RDIMM memory (up to 4TB RAM)
• 8 x SATA 6Gb/s 3,5”/2,5”, 2 x M.2 connector (2280/22110)
• 5 x PCIe Gen5 x16 link, 1 x PCIe Gen5 x8 link expansion slots
• 2 x USB 3.2 Gen1
• Onboard ASMB11-iKVM management module

Processor System
CPU
2 x Socket LGA 4677 Intel Xeon Processor Scalable Family (up to 350w)
Memory
16 x DDR5 RDIMM (8-channel per CPU, 8 DIMM per CPU), memory type 4th and 5th
Storage
8 x SATA 6Gb/s 3,5”/2,5”, 2 x M.2 connector (2280/22110)
Chipset
Intel C741
Graphics
Aspeed AST2600 64 MB
LAN Chipset
2 x 10 GbE LAN ports (RJ45, Intel X710-AT2), 1 x Mgmt LAN
Audio
No

Front I/O
Power Button
1 x Power Button, 1 x Reset Button
LED
1 x Power LED, 1 x HDD LED, 3 x Network Activity, 1 x Alert, 1 x Temperature alert
USB
2 x USB 3.0

Rear I/O
USB
2 x USB 3.2 Gen1
VGA
1 x VGA port
LAN
2 x 10 GbE LAN (RJ45, Intel X710-AT2) + 1 x Mgmt LAN

Management Solution
On-board ASMB11-iKVM (out-of-band/BMC AST2600)

Expansion
Slot Opening
5 x PCIe Gen5 x16 link, 1x PCIe Gen5 x8 link

System Security
Intrusion Switch, Key Lock, Padlock Loop, Kensington Slot

Mechanical
Dimension
680 x 481 x 89 mm
Weight
12.50kg
Power Supply
2HU Server Power Supply

Environmental
Operating Temp
10°C ~ 35°C
Non-Operating Temp
-40°C ~ 70°C
Humidity
20% ~ 90%

Monitoring
CPU Temperature
FAN RPM

OS Support
OS
Windows Server, Linux, Ubuntu, ESXi
